Gas Meter Flow Measurement Standards: Compliance Guidelines for AGA 7, 9, and 11 Custody Transfer
Quick Answer: AGA 7 covers turbine meters for natural gas custody transfer. AGA 9 covers multipath ultrasonic meters and AGA 11 covers Coriolis meters for the same duty. Silver Automation Instruments supplies compliant ultrasonic and Coriolis packages once you provide your operating pressure, temperature, pipe size and flow range.
Compliance with gas meter flow measurement standards matters when the measured gas changes ownership. A small error in a custody transfer meter turns into real money. In practice, most engineers skip the standard details until an auditor or a commercial dispute forces the issue. We have seen this on customer sites in Vietnam, Indonesia, Mexico and Nigeria.
AGA 7 Turbine Meter Compliance in Short
AGA 7 defines installation, calibration and operation requirements for turbine meters measuring natural gas. The meter body, rotor, bearings and pickup must match the pipe size and flow range. Calibration should be performed at an accredited flow laboratory. The K factor is not flat across the full range. You need linearization points at several flow rates. Pressure and temperature correction are mandatory because turbine meters read actual volume. Without a PT100 and a pressure transmitter with 4-20 mA HART, the volume cannot be converted to standard or energy units.
Straight run matters for AGA 7. Flow conditioners help but do not remove all swirl. Bearing wear changes the meter factor. Most intermediate gas stations still use AGA 7 meters, but new high value custody transfer points often shift to AGA 9 or AGA 11 because diagnostic data is better.
AGA 9 Ultrasonic Meter Compliance Fundamentals
AGA 9 applies to multipath ultrasonic gas meters. The standard requires a defined number of paths, path angles and transducer performance. A compliant meter must pass dry calibration and flow calibration at an approved facility. The electronics must produce speed of sound checks, path performance alarms and encrypted totals for audit. Software diagnostics allow operators to detect liquid contamination, transducer failure or blocked flow paths.
Flow profile distortion is the main risk. The upstream straight pipe requirement depends on the flow conditioner, the pipe configuration and the meter path design. A 300 mm line after a header can need 20 diameters or more if no flow conditioner is used. We normally ask for an isometric drawing before we recommend a meter size. A customer in Indonesia installed an ultrasonic meter after two elbows without a conditioner. The path diagnostics showed swirl and the commercial total was disputed. A flow conditioner fixed the problem.
AGA 11 Coriolis Meter Compliance for Gas Custody Transfer

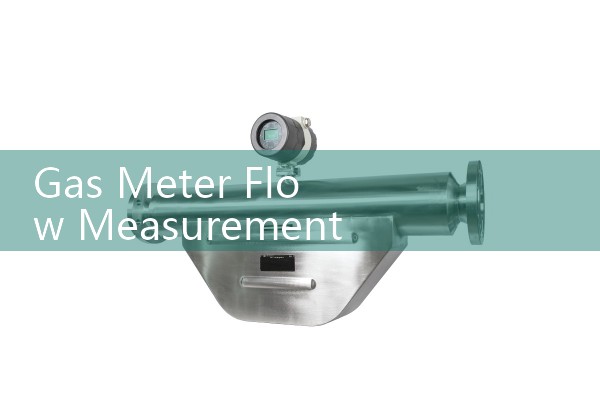

AGA 11 covers Coriolis mass flow meters used for natural gas custody transfer. The advantage is direct mass flow measurement. You do not need a pressure and temperature correction to get mass or standard volume. The meter also measures density. This helps if gas composition changes often or if you need an independent density check. Calibration under pressure with the actual gas or a surrogate gas is required. The meter uncertainty depends on the turndown and pressure. A Coriolis meter sized for low pressure pipeline gas may have a large pressure loss at high flow rates.
Coriolis meters are not affected by swirl in the same way as turbine or ultrasonic meters. Installation is simpler. You still need to avoid pulsation, vibration and slugging. A filter upstream prevents particles from eroding the tubes. For high pressure natural gas above 40 bar, tube design and flange rating need careful selection. We supply Coriolis mass flow meters with 316L stainless steel, Hastelloy or other wetted materials depending on the gas quality.
Installation, Calibration and Audit Trail
All t
Custody transfer packages from Silver Automation Instruments include the meter body, flow computer, PT100, pressure transmitter and 4-20 mA HART wiring diagrams. We preconfigure common ranges for natural gas, associated gas and clean fuel gas. For a 6 in DN150 line at 25 bar and 20,000 Nm3/h, we often recommend an AGA 9 ultrasonic meter. For smaller lines or direct mass measurement, an AGA 11 Coriolis meter makes sense.
Meter Selection by Application and Region
Gas processing plants in Southeast Asia and the Middle East often standardize on AGA 9 for large export lines. LNG terminals and compressed natural gas stations may select AGA 11 Coriolis meters for bunkering or truck loading because mass balance is direct. In Latin America and Africa, AGA 7 turbine meters still appear in older pipeline networks. Upgrading to AGA 9 or AGA 11 is common when the measurement uncertainty budget is tightened or when a new commercial contract is signed.
We do not recommend a custody transfer meter without knowing the minimum and maximum flow rates, pressure, temperature, gas composition and piping layout. These inputs determine the meter size, body material, flange class and calibration range. A customer in Australia needed a meter for coal seam gas at 15 bar with 30,000 kg/h peak flow. We supplied an AGA 11 Coriolis package with 4 in flanges and a flow computer that accepted density, pressure and temperature inputs. The meter passed the site proving run on the first day.
FAQ for Gas Meter Flow Measurement Standards Compliance
What is the difference between AGA 7, AGA 9 and AGA 11? AGA 7 covers turbine meters for natural gas custody transfer. AGA 9 covers multipath ultrasonic meters. AGA 11 covers Coriolis mass flow meters. Each standard defines installation, calibration, diagnostics and audit requirements.
Can I use a vortex flow meter for custody transfer? Vortex meters are usually not accepted for natural gas custody transfer under AGA 7, AGA 9 or AGA 11. They are used for check metering, fuel gas monitoring and process control. Silver Automation Instruments supplies vortex flow meters for those non-custody tasks.
What accuracy should I expect from an AGA compliant meter? AGA 9 ultrasonic meters often achieve plus or minus 0.5 percent of reading or better after flow calibration. AGA 11 Coriolis meters can reach similar mass flow accuracy for gas when sized correctly. AGA 7 turbine meters depend on calibration, bearing condition and repeatability.
Do I need a flow conditioner for AGA 9 ultrasonic meters? Not always. It depends on the upstream piping, the flow conditioner design and the meter path configuration. We recommend sending an isometric drawing before ordering so we can check the straight run requirement.
Does Silver Automation Instruments provide full AGA custody transfer packages? Yes. We supply the meter body, flow computer, temperature and pressure transmitters, calibration certificates and documentation. Send us your pressure in bar, temperature in °C, pipe size in DN and flow range. We will recommend an AGA 9 or AGA 11 package and give you a quotation.
Contact Silver Automation Instruments at +86-25-68650347 or WhatsApp +86-25-52155837. WeChat is +86 15365082610. You can also reach us at flow-meter.com.au. Send your gas composition, operating pressure, temperature, pipe size and flow range. We will reply with a meter model, accuracy statement and price for your custody transfer application.
