Laser Water Flow Meter Technology for Radar and Optical Speed Monitoring in Natural Rivers
Quick Answer: Radar speed sensors and optical laser velocity sensors give field teams a noncontact way to measure surface velocity in natural rivers. Radar performs better in flood water and high sediment conditions. Optical laser sensors perform better in clear water and low velocity ranges. Silver Automation Instruments supplies companion industrial flow meters, level transmitters, pressure transmitters, and paperless recorders for river pumping and open channel systems. Send your river width, flow range, water level range, and power supply to get a specific configuration and price.
Natural river flow monitoring differs from closed pipe flow measurement. An electromagnetic flow meter or an ultrasonic flow meter works well inside a full pipe. A river is an open channel. Water level changes daily and seasonally. Sediment load changes after rain. A DN300 electromagnetic flow meter installed in a river bed is not practical. Most engineers skip this part and look for a noncontact velocity method first.
Radar Speed Monitoring for Natural Rivers
Radar velocity sensors commonly use 24 GHz or 77 GHz microwave signals. The sensor mounts on a bridge, cableway, or side bracket. It sends a microwave beam toward the water surface. The return frequency shift is proportional to surface velocity. Typical installation height is 5 to 15 m above the water. Measurement range is 0.02 to 15 m/s. Accuracy is often ±1% of reading or ±0.01 m/s.
Radar sensors work during flood events. They do not touch the water. Floating wood, sand, and mud do not damage the sensor. Power consumption is low enough for solar powered stations. Field units usually have an IP68 housing. Outputs include 4-20 mA, RS485 Modbus, and SDI-12. A 24 GHz radar can measure from a bridge deck even when the river rises below.
We have seen this on customer sites many times. In a drainage project in Malaysia, engineers mounted two radar velocity sensors on a bridge. One sensor faced upstream and one faced downstream. Data went through a 4G RTU to the state water authority. Power came from an 80 W solar panel and a 12 V 100 Ah battery. This setup kept running during a three day storm.
Optical Laser Speed Monitoring in Natural Rivers
Optical laser velocity sensors use a 650 nm laser or infrared laser source. The sensor measures the movement of fine particles or microbubbles on the water surface. The sampling volume is small. Working distance is usually 0.5 to 2 m from the sensor. Optical methods have good resolution at low velocity. They suit laboratory flumes, small channels, and clear water environments.
In practice, a natural river with very clear water can produce a weak radar return. A laser Doppler sensor can fill that gap. But heavy rain brings sediment and floating debris that block the light path. Field engineers often combine radar and optical sensors. Radar covers high water and high turbidity. Optical covers low flow and clear water.
Typical optical velocity sensor parameters include a range of 0.01 to 4 m/s. Linearity is better than 0.5%. Operating temperature is -10 to 50 °C. Supply voltage is 9 to 24 V DC. Power consumption stays below 2 W. These numbers work well for remote telemetry stations.
Flow Calculation and Site Selection
Surface velocity is not average velocity. Field teams multiply surface velocity by a velocity coefficient between 0.85 and 0.95. Rough river beds and thick vegetation reduce the coefficient. The cr
Mount the sensor away from bridge piers and sharp bends. Keep a straight reach of at least 5 times the river width. Sensor height must be stable. Bridge vibration adds noise to the velocity signal. Data loggers should average readings over 15 s or 60 s. Most hydrological stations use a 15 s average.
Silver Instruments Product Pairing for River Monitoring

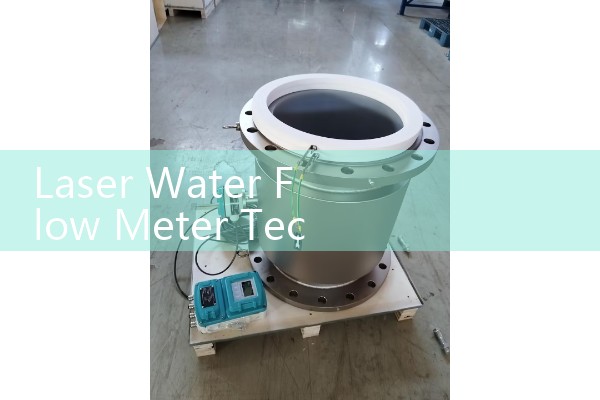

Silver Automation Instruments does not sell laser velocity sensors as a core product. The company supplies industrial flow meters and process instruments that support river monitoring systems. For a pump station taking water from a river, a DN200 electromagnetic flow meter can be installed on the pump discharge line. Flow range is 50 to 500 m³/h. Output is 4-20 mA HART. Accuracy is ±0.5% of reading. A PT100 temperature sensor provides compensation if needed.
Ultrasonic level transmitters track river stage. Pressure transmitters monitor pump discharge pressure. Paperless recorders display flow, level, and pressure trends on one screen. This combination covers both open channel monitoring and closed pipe monitoring at a water intake.
Send us your pipe size (DN), flow range, water level range, and power supply. We will reply with a specific model and price list. Contact Silver Automation Instruments at Tel: +86-25-68650347, Whatsapp: +86-25-52155837, WeChat: +86 15365082610.
Field Installation Checklist
Survey the river cross section before installation. Record water level and cross section width. Mount the sensor at least 1 m above the highest recorded flood level. Keep the radar beam angle between 30 and 45 degrees from the water surface. Do not calibrate during heavy rain. Face solar panels toward the equator. Mount the battery box 1.5 m above ground to avoid flood immersion.
Use shielded twisted pair cable for signal lines. Separate signal cables from power cables. Keep ground resistance below 4 ohms. Add a 120 ohm termination resistor at both ends of an RS485 bus. In lightning prone areas, install surge protectors on sensor and RTU ports.
FAQ
Can a radar velocity sensor measure total river flow?
Yes. The sensor measures surface velocity. Total flow requires a cross section area and a velocity coefficient. Most sites use a data logger to calculate flow from stage and velocity.
Which sensor works better in high sediment rivers?
Radar works better in high sediment and flood conditions. Laser and optical paths get blocked by mud and debris. Radar signals still return from the water surface.
What data logger is needed for natural river monitoring?
Use a data logger with 4-20 mA, Modbus, or SDI-12 inputs. Field sites benefit from 4G communication and local storage. A 15 s sampling interval is common.
Does Silver Instruments provide laser water flow meters?
Silver Instruments provides closed pipe industrial flow meters such as electromagnetic flow meters and ultrasonic flow meters. For river projects, the company supplies level transmitters, pressure transmitters, and recorders that work with radar or laser velocity sensors.
How do I get a quotation for a river monitoring system?
Send the river width, velocity range, water level range, power supply, and installation location. Contact Silver Automation Instruments at Tel: +86-25-68650347 or Whatsapp: +86-25-52155837.
