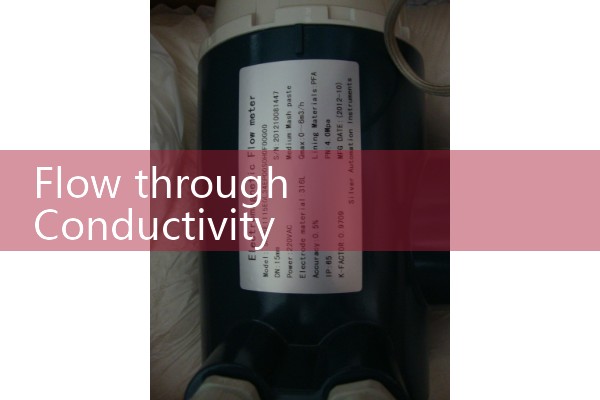

Flow through Conductivity Meter Cells: Monitoring Liquid Purity alongside In-Line Volumetric Tracking
Quick Answer
Installers often run a flow through conductivity cell and a flow meter in the same line. The cell gives liquid purity in µS/cm and the meter gives volume or mass. Silver Automation Instruments supplies the flow meter side and helps match the full loop.
Why Combine Conductivity Cell Flow Paths with Volumetric Meters
A flow through conductivity cell measures how well a liquid carries current. That value in µS/cm shows the ion load. But it does not tell you how much liquid moved. A magnetic flow meter or Coriolis mass flow meter measures volume or mass. Together they close a common gap in water treatment, food processing and chemical dosing.
In practice most engineers install the conductivity cell in a bypass line or directly in the main pipe. The flow meter sits upstream or downstream. The exact order depends on temperature, bubble formation and pressure drop. We have seen this on customer sites many times.
Common Industries and Specific Values
A desalination plant in the Middle East may need seawater conductivity near 50,000 µS/cm at the inlet and 400 µS/cm at the permeate outlet. The product water line often uses a DN80 electromagnetic flow meter with PTFE liner and 316L electrodes. The conductivity cell operates at 25 °C reference temperature. Flow output goes through 4-20 mA HART to the same PLC.
A beverage plant in Southeast Asia monitors CIP chemical wash lines. Conductivity tells the operator when caustic concentration returns to feed water level. The same line uses a DN25 or DN40 electromagnetic flow meter. Flow range can be 0.5 to 10 m3/h. The meter needs food grade liner and no dead zones.
A chemical plant in Vietnam dilutes concentrated acid with demineralized water. Conductivity is not linear at high concentration. That is why they also need a Coriolis mass flow meter for concentration and total mass balance. The output in kg/h gives a direct number for dosing control.
Flow Meter Selection for Conductivity Cell Installations
For conductive liquids above 5 µS/cm, an electromagnetic flow meter works well. It has no moving parts and no pressure drop from internal obstructions. For non conductive liquids like ultrapure water below 1 µS/cm, an electromagnetic flow meter can still measure if the signal converter is designed for low conductivity. But it is safer to verify the minimum conductivity with our engineers.
For oils, solvents and high purity fluids where conductivity cell input is not suitable, an oval gear flow meter or Coriolis mass flow meter is better. An oval gear meter works with viscous oils and fuels. A Coriolis meter handles mass flow, density and temperature in one device.
Temperature and pressure limits matter. A standard flow through conductivity cell may handle 80 °C and 6 bar. If your CIP loop reaches 120 °C, you need a high temperature cell housing. The adjacent flow meter must also match that temperature. A PTFE lined magnetic flow met
Outputs and Integration
The conductivity transmitter usually gives 4-20 mA. The flow meter gives pulse, 4-20 mA HART or Modbus. Using one PLC with both signals allows automatic rejection of out of spec batches. A paperless recorder can store both signals for batch reports. That is common in food and beverage batching.
If the process is in ATEX Zone 1, both the conductivity cell transmitter and the flow meter need explosion proof or intrinsic safety certification. Silver Instruments supplies ATEX rated flow meters for gas and liquid zones. We can help you match the certificates before purchase.
Installation Details That Prevent Errors
Here is the thing. Air pockets are the largest source of unstable conductivity readings. Do not install a flow through conductivity cell at the top of a pipe if air pockets can form. Put the cell in a vertical upward flow path or in a bypass with continuous flow. The flow meter should stay in a full pipe section. Magnetic flow meters need a straight inlet run of 5D upstream and 3D downstream in most compact installations.
Most engineers skip grounding until startup fails. Electromagnetic flow meters need proper grounding rings or grounding electrodes in plastic pipes. Conductivity cells also need clean electrode surfaces. In dirty water, choose a flow through cell with easy removal for cleaning. A ball valve manifold helps isolate the cell without stopping the main line.
What to Send for a Quote
For a fast quote, send us your liquid type, conductivity range in µS/cm, temperature in °C, pressure in bar, pipe size DN, flow range and output preference. We can recommend a flow meter and advise on flow through conductivity cell setup. Contact Silver Automation Instruments at Tel +86-25-68650347, WhatsApp +86-25-52155837 or WeChat +86 15365082610.
FAQ
Can an electromagnetic flow meter work with low conductivity liquids?
Yes but check the minimum conductivity. Many models need at least 5 µS/cm. For ultrapure water below 1 µS/cm, ask our engineers before ordering.
Can one transmitter show both conductivity and flow?
Usually no. The conductivity transmitter and flow meter transmitter are separate. They share signals through 4-20 mA HART or Modbus to a PLC or paperless recorder.
What is a typical pipe size for CIP conductivity monitoring?
DN25 to DN50 is common. Some larger tanks use DN80. The flow range usually sits between 0.5 and 20 m3/h.
Is a Coriolis meter better than a magnetic flow meter for this task?
Not always. A Coriolis meter gives mass flow and density but costs more. Use it when conductivity changes with concentration or when the liquid is non conductive.
Do I need a bypass line?
Not for every case. Inline cells work if flow and temperature are stable. A bypass is useful for high solids or frequent cleaning.
