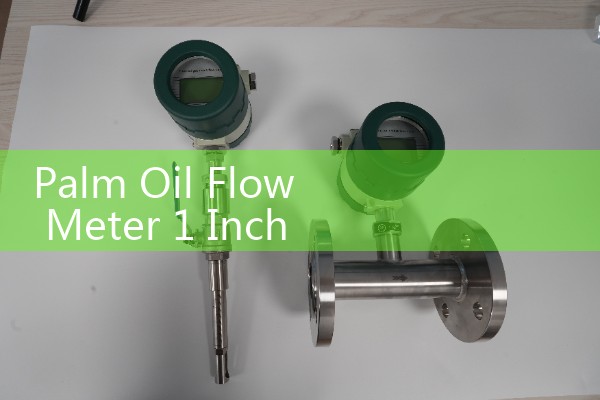

Palm Oil Flow Meter 1 Inch for Pilot Plant Processing Controls
Quick Answer: A 1-inch flow meter in a palm oil pilot plant must cope with viscosity swings, possible solid particles, and process temperature from 40 °C to 130 °C. Silver Automation Instruments supplies electromagnetic flow meters for crude palm oil, oval gear meters for refined fractions, and Coriolis meters for mass and density. Request a quote by sending your flow range, process temperature, pipe size (DN), and required certification. We reply within one business day.
Why the 1-Inch Size Matches Pilot Plant Needs
Pilot plants usually work with pipe sizes between DN15 and DN25. A 1-inch line (DN25) allows a flow range from 0.3 m³/h up to 10 m³/h for crude palm oil. This size is compact enough for test runs but large enough to avoid clogging from fibre or sludge. Your process likely shifts between CPO, bleached palm oil, and fatty acid distillates. So the flow meter must offer a wide turndown ratio. Electromagnetic meters provide up to 100:1 turndown. Oval gear meters give 10:1 with high accuracy at low flows.
Electromagnetic Flow Meter for Crude Palm Oil (CPO)
We recommend an electromagnetic flow meter when your CPO conductivity is above 5 µS/cm. CPO often contains water and dissolved salts, making it conductive. The SIL-MAG 2500 from Silver Instruments works with a PTFE liner and Hastelloy C electrodes. It handles process temperatures up to 150 °C and pressures up to 16 bar. The DN25 version outputs 4-20 mA HART, with an optional RS485 Modbus. There are no moving parts to wear down from fibre or kernel bits. If your pilot plant uses steam tracing, the meter can operate with a PTFE liner that withstands thermal cycling. We have seen this meter reduce unplanned maintenance by 70 percent in a Malaysian oleochemical pilot line.
Oval Gear Flow Meter for Refined Palm Oil Fractions
For RBD palm oil, palm olein, or palm stearin, viscosity often sits between 30 cP and 500 cP. These fluids are too viscous for turbine meters and can coat electrode surfaces of mag meters if not cleaned. An oval gear flow meter offers ±0.5 percent reading accuracy. Silver Instruments supplies a DN25 oval gear meter with cast iron or aluminum housing, Viton seals, and a built-in PT100 temperature sensor. Pulse output connects directly to your PLC. The meter works in horizontal or vertical lines. A recent customer in Indonesia uses this meter to dose RBD oil into a hydrogenation reactor at 5 L/min. Send us your exact viscosity (cP) and flow range to select the right gear material and seal.
Coriolis Mass Flow Meter for Pilot Plant Batch Control
When you need direct mass flow and density measurement, choose a 1-inch Coriolis meter. The SIL-COR 2500 measures up to 500 kg/h with ±0.1 percent rate accuracy. It provides real-time density, which helps track oil quality during fractionation trials. The wetted parts are 316L stainless steel, suitable for food-grade palm oil applications. Because the meter has no upstream straight run requirements, you can install it in tight pilot plant skids. If your process includes hexane extraction, select an ATEX Zone 1 certified Coriolis meter from our range.
Ultrasonic Clamp-On Meter for Non-Intrusive Tests
Sometimes cutting into an existing pilot line is not an option. A clamp-on ultrasonic flow meter from Silver Instruments installs quickly on DN25 piping. It measures clean palm oil derivatives with less than 3 percent air bubbles. Accu
Real Case: 1-Inch Mag Meter in a Malaysian Pilot Plant
Last year, a palm oil research centre in Johor, Malaysia replaced a mechanical turbine meter with a SIL-MAG 2500 DN25. The old meter jammed frequently because of fibre. After installing the mag meter with PTFE liner and Hastelloy electrodes, the team logged over 2000 hours of uninterrupted flow data. The meter tracked CPO flow at 1.5 to 4.5 m³/h, 85 °C, and 4 bar pressure. Output was 4-20 mA to a Siemens PLC. Setup took two days, including grounding rings and empty pipe detection.
Key Specifications to Ask Your Flow Meter Supplier
Do not accept a generic meter. Ask for these details:
- Liner material: PTFE or PFA for high temperature and chemical resistance.
- Electrode material: Hastelloy C-22 for CPO, 316L for refined oils.
- Process connection: Tri-clamp for hygienic lines, ANSI or DIN flanges for standard.
- Output: 4-20 mA HART plus Modbus RTU for digital integration.
- Ingress protection: IP67 minimum, IP68 if washdown is frequent.
- Hazardous area certification: ATEX Zone 1 or IECEx if your pilot plant uses solvents.
- Accuracy: ±0.5 percent for mag and oval gear, ±0.1 percent for Coriolis.
Send us your full specification sheet and we match the meter model within hours.
Installation Tips for 1-Inch Meters in Palm Oil Lines
Maintain 5 diameters of straight pipe upstream and 3 downstream. For mag meters, ensure proper grounding with grounding rings. Avoid mounting the meter at the highest point where gas accumulates. If steam cleaning is planned, verify the meter temperature rating. For oval gear meters, install a strainer 200 micron upstream to catch solids. For Coriolis meters, minimize pipe vibration by fixing supports on both sides.
FAQ: Palm Oil Flow Meter for Pilot Plants
What flow meter is best for crude palm oil in a 1-inch pilot line?
An electromagnetic flow meter. It handles fibrous content, operates with CPO conductivity above 5 µS/cm, and has no moving parts to clog.
Can I use an oval gear meter for palm fatty acid distillate (PFAD)?
Yes, if the process temperature stays below 120 °C and viscosity is under 500 cP. Request Viton or PTFE seals and check material compatibility with your PFAD acidity.
What is the maximum flow rate for a DN25 mag meter with palm oil?
Our SIL-MAG 2500 DN25 handles 0.3 to 12 m³/h for CPO. For lower flows, an oval gear meter may be more accurate.
Do I need an explosion-proof flow meter for a palm oil pilot plant?
If your process uses hexane or other solvents for extraction, yes. Order the meter with ATEX Zone 1 or IECEx certification. Silver Instruments supplies certified models with 4-20 mA Ex ia output.
How do I get a quotation for a 1-inch palm oil flow meter?
Send your process temperature (degrees C), pressure (bar), flow range (kg/h or L/min), pipe size (DN), and required certifications to our team. You will receive a quote and datasheet within 24 hours.
To discuss your pilot plant flow meter, email us your process parameters or request a call back from an engineer. Silver Automation Instruments delivers the right meter for palm oil applications across Southeast Asia, Africa, and Latin America.
```
