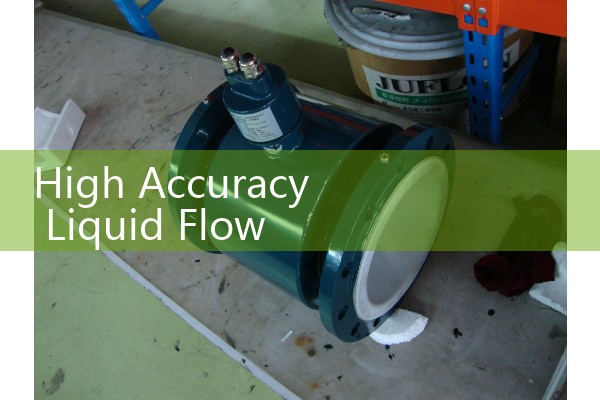

High Accuracy Liquid Flow Meter: Premium Bench Loop Reference Master Probes
Quick Answer: A bench loop reference master probe is the fastest way to verify and calibrate inline flow meters without pulling them from the process. Silver Instruments delivers compact, skid mounted reference standards with accuracy down to ±0.05% of rate. You get a trusted secondary standard that works with water, solvents, fuels, and heat transfer oils right on your test bench.
Most technicians who maintain flow meters in a factory or calibration lab face the same headache. You have dozens of devices installed across the plant. Sending each one to an external ISO 17025 lab costs money and stalls production. A premium bench loop reference master probe solves that. It sits on your workbench, runs on your own liquid, and gives you a traceable master reading in minutes. We have seen this on customer sites many times, especially where batch dosing or custody transfer is involved.
What Exactly Is a Bench Loop Reference Master Probe
Think of it as a portable calibration skid built around a high accuracy Coriolis mass flow meter. The reference master sits in series with the unit under test. Pump liquid through both at the same time. Compare the output of your field device against the master. No need to remove the flow meter from the pipe if you do inline checks. For bench use, you mount both meters on a rigid frame and run the loop. Silver Instruments supplies the complete package: master meter, pump, reservoir, pulse counter, and HMI panel. All you need is a power supply and the liquid.
We configure the system around a Coriolis sensor because mass flow measurement avoids density, temperature, and viscosity drift. A typical master probe from Silver Instruments covers ranges from 0.2 kg/h up to 30,000 kg/h. Pipe sizes span DN15 to DN50, but we can build custom manifolds for larger meters up to DN100. The reference accuracy stays at 0.05% or 0.1% of rate, traceable to national standards. Many of our customers in Southeast Asia and the Middle East use these masters for in house verification of fuel oil meters, solvent batching, and pharmaceutical water injection skids.
Why Engineers Prefer a Dedicated Bench Loop Master
Here is the reality. Clamp on ultrasonic meters are handy for an instant spot check. But they cannot match the repeatability of a Coriolis master in a closed loop when you need 0.1% uncertainty or better. Turbine meters drift with viscosity. Positive displacement meters lose accuracy as clearances wear. A Coriolis based master probe ignores viscosity, density, and flow profile effects. So the reading you get on the bench is the same reading you trust on the factory floor.
Another practical reason is speed. A paint manufacturer in Vietnam told us last year they were shipping two turbine meters every quarter for recalibration. Transit alone took eight days. After they installed a Silver Instruments bench loop master, they now validate all six filling line meters in one morning. That is a real example, not a theoretical case. The payback came before the third month.
Key Specifications That Matter on the Shop Floor
Engineers always ask for five numbers first. We list them because that is what you need to match against your process.
• Flow range: 0.2 to 30,000 kg/h (higher on request)
• Reference accuracy: ±0.05% of rate for liquids with viscosity 0.3 to 200 cP
• Wetted materials: 316L stainless steel, Hastelloy C22 available for aggressive chemicals
• Output signals: pulse, 4-20 mA HART, Modbus RTU, and Ethernet/IP
• Power: 24 V DC or 110/220 V AC with integrated power supply
The standard frame is aluminum profile with locking castors. The reservoir tank holds 20 to 100 liters, jacketed if you need temperature control. Every system comes with a PT100 temperature sensor and a pressure transmitter pre plumbed into the loop. Because temperature and pressure compensation matters when you push for 0.05% uncertainty.
One detail most engineers skip at first: degassing. In a bench loop, tiny air bubbles ruin repeatability. We add an automatic air eliminator on the return line. It vents trapped gas before the liquid enters the pump suction. In practice, this simpl
Where Bench Loop Master Probes Deliver the Most Value
Fuel and oil custody transfer is the most common application we support. A diesel loading terminal in Tanzania uses two Silver masters to check truck loading meters every morning. The terminal supervisor runs a 200 liter batch at 500 kg/h. Master reading vs truck meter reading must stay within 0.3%. If it drifts, they adjust the meter factor straight away. No more disputes with buyers.
Food and beverage batching is another strong fit. A dairy in New Zealand uses a 3A approved master probe to verify twelve oval gear meters on filling lines. They pump CIP cleaning solution through the loop, then switch to milk or cream. The Coriolis master does not require recalibration when the product changes, unlike a turbine or PD meter. That single feature saves hours every product changeover.
Chemical injection and dosing skids in the Middle East often have limited space. Our compact bench master with a 20 liter tank fits right next to the process. Operators can grab a quick verification between batches of corrosion inhibitor or biocide. Wetted parts in Hastelloy C22 handle the aggressive fluids without any issue.
Water and wastewater plants also benefit. When you have 800 mm electromagnetic flow meters in a main line, you cannot pull them out. Instead, you use a transportable master probe on a smaller DN50 bypass line. Run the same water through both. The master reading helps you detect coating buildup or electrode issues on the big mag meter. It is a practical field verification method endorsed by many engineering consultants.
How to Specify Your Bench Loop Reference Master
Send us your pressure in bar, temperature in °C, pipe size in DN, and your typical flow range in kg/h or litres per minute. Also tell us your liquid type and viscosity. Our application engineers will propose the correct Coriolis sensor size and frame configuration. We build each system to order at our facility in China and ship worldwide to Southeast Asia, Oceania, Latin America, Africa, and the Middle East. Lead time is typically 4 to 6 weeks.
For immediate technical questions, reach us on WhatsApp at +86-25-52155837 or WeChat at +86 15365082610. Office telephone is +86-25-68650347. You can also browse our main product range at flow-meter.com.au. Silver Automation Instruments has supplied flow calibration solutions to over forty countries, and we stand behind every master probe with a 24 month warranty and remote commissioning support.
Frequently Asked Questions
Can I use the master probe with liquids above 200 cP viscosity?
Yes. We match the Coriolis sensor tube geometry to your viscosity range. For oils up to 2,000 cP, we select a dual bent tube design with a lower pressure drop. The accuracy remains within 0.1% of rate without any viscosity correction factor.
What is the warm up time for a bench loop master?
The Coriolis transmitter needs about 10 minutes to stabilize. The pump and fluid loop reach thermal equilibrium within 30 minutes for most bench setups. We recommend a 30 minute warm up before any calibration run. It avoids zero drift.
How often should I send the master probe for external recalibration?
Every 12 months is standard. Silver Instruments offers a recalibration service with a 5 day turnaround. We provide a delta check certificate that shows the before and after values, so you can track long term drift trends.
Can I use the bench loop master in an ATEX Zone 1 area?
On request, we supply the complete system with ATEX Ex d or Ex ia certification for Zone 1 gas atmospheres. The standard design targets a safe area bench environment. For hazardous areas, we replace the electric pump with an air driven double diaphragm pump and upgrade the transmitter housing.
Do you include a calibration certificate with every master probe?
Every unit ships with a factory calibration certificate traceable to NIST or CNAS standards. The certificate reports accuracy at five flow points, both increasing and decreasing flow. For a small extra charge, we can provide an ILAC MRA accredited certificate.
