Flow Meter How Does It Work: Fundamental Engineering Principles of Fluid Dynamics
Quick Answer
A flow meter measures the volume or mass of a fluid passing through a pipe per unit of time. Most industrial flow meters convert a physical phenomenon, such as induced voltage or Coriolis force, into a flow rate signal. The correct meter for your plant depends on fluid conductivity, viscosity, temperature, pressure, and pipe diameter.
Fluid Dynamics Basics That Drive Flow Meter Design
Engineers who install flow meters rarely need to solve Bernoulli equations by hand. But a few fluid dynamics concepts explain why different meter technologies exist. The continuity equation tells us mass is conserved. Volumetric flow rate equals average velocity times cross-sectional area. For a given pipe size, velocity changes with pressure and temperature for gases. Mass flow stays constant regardless of pressure and temperature shifts.
Reynolds number (Re) separates laminar flow from turbulent flow. This matters for vortex flow meters. They need turbulent flow with Re above 20,000 to generate a stable Karman vortex street. Oval gear meters, on the other hand, work well in laminar flow with high-viscosity liquids like heavy fuel oil.
Here is the thing: most fluid dynamics textbooks focus on ideal fluids. In real industrial processes, fluids are dirty, sticky, or corrosive. That is why Silver Automation Instruments stocks meters with liners, exotic electrodes, and full-bore designs. A wastewater plant in Surabaya recently replaced an old turbine meter with a DN150 electromagnetic flow meter from us. The sensor has a PTFE liner and titanium electrodes to handle 5% sludge. Accuracy is 0.5% of reading, stable even at 0.3 m/s velocity.
Common Flow Meter Technologies and Their Core Principles
Each type of flow meter leverages a specific physical law. The job of the instrument is to turn that physical response into a reliable 4-20 mA HART signal or digital pulse output.

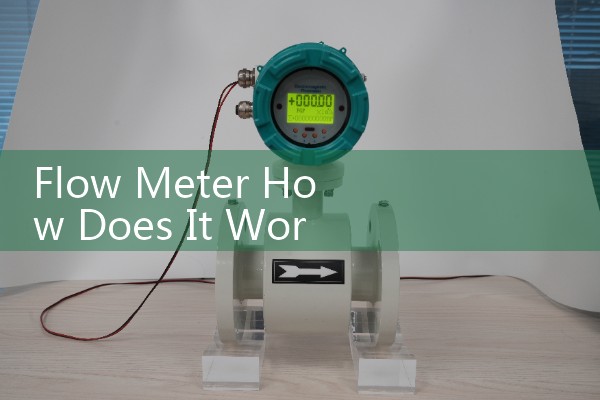

Electromagnetic Flow Meters (Magmeters)
Faraday’s Law of induction governs magmeters. A conductive liquid flows through a magnetic field generated by coils. The induced voltage is directly proportional to flow velocity. Minimum conductivity is typically 5 µS/cm, which covers tap water, acids, slurries, and juices. Deionized water and hydrocarbons do not work because they lack enough ions.
Silver Automation Instruments ships electromagnetic flow meters with 316L electrodes as standard. For seawater or brine, we supply Hastelloy C electrodes. A desalination plant in Egypt ordered 20 units, sizes DN25 to DN200, with rubber liners and IP68 remote transmitters. They measure brine flow at 40 bar, 35°C. Send us your fluid conductivity and pipe size, and we will check compatibility.
Coriolis Mass Flow Meters
Coriolis meters use the generation of a Coriolis force inside vibrating tubes. Fluid mass passing through the tubes creates a phase shift. This shift directly yields mass flow rate and density. No Reynolds number correction, no temperature compensation needed. A single meter gives you mass flow, density, and temperature. That is why process engineers like it for custody transfer and batching.
We recently calibrated a DN15 Coriolis meter for a paint manufacturer in Vietnam. They needed to dose TiO2 dispersion at 30 kg/h with ±0.2% accuracy. Viscosity was around 800 cP. The meter works fine up to 10,000 cP. If your process involves high-viscosity fluids, send us your mass flow range, density, and operating pressure. We will size the right tube material, stainless steel 316L or Hastelloy.
Ultrasonic Flow Meters
Transit-time ultrasonic meters send sound waves diagonally across the pipe. The difference between upstream and downstream transit time is proportional to flow velocity. Clamp-on sensors attach outside the pipe, making them popular for large water mains up to DN3000.
Doppler ultrasonic meters rely on reflections from particles or bubbles. They suit dirty water but require a minimum concentration of suspended solids. Silver Automation Instruments offers both types. A water authority in the Philippines uses our clamp-on meter on a DN1200 concrete pipe. They measure raw water intake at 5,000 m³/h with less than 1% error.
Vortex Flow Meters
A bluff body placed in the flow stream generates alternating vortices downstream. The frequency of vortex shedding is proportional to flow velocity. You need a Reynolds number above 20,000 for a clean linear output. Steam, compressed air, and natural gas applications use vortex meters a lot.
Our vortex meters include an integrated PT100 sensor for temperature compensati
Oval Gear Flow Meters
Positive displacement principle. Two oval gears rotate as fluid fills the measuring chamber. Each rotation displaces a fixed volume. Very high accuracy for viscous, clean liquids like diesel, lube oil, and resins. Viscosity up to 100,000 cP is measurable.
A diesel distribution company in Mozambique uses our oval gear meters with mechanical registers on their loading skids. They batch 200 L drums with ±0.5% repeatability. For electronic outputs, we add a pulse transmitter. If your fluid viscosity exceeds 100 cP, an oval gear meter beats a turbine meter in accuracy. See our oval gear flow meter for diesel on the website.
Thermal Mass Flow Meters
Thermal dispersion principle. A heated sensor measures heat loss to the flowing gas. Mass flow is derived from the cooling effect. No temperature or pressure compensation needed. Works for compressed air, biogas, natural gas, and flare gas. Insertion probes fit large ducts.
Silver Automation Instruments recently delivered thermal mass meters with ATEX Zone 1 certification to a biogas plant in Peru. They measure methane-rich biogas with 2% accuracy of reading. Provide your gas composition, pipe diameter, and flow range for a quote.
Matching the Principle to Your Plant Reality
Most engineers skip this part. They pick a meter based on what they used in the past. But a simple fluid property check can save years of maintenance headache. Ask these questions before requesting a quote.
Is the fluid conductive? If conductivity is below 5 µS/cm, scrap the electromagnetic meter and look at Coriolis or ultrasonic.
What is the viscosity range? For values above 100 cP, positive displacement oval gear meters or Coriolis meters work best.
Do you need mass flow or volumetric flow? Batching by weight demands a Coriolis mass meter.
What is the pipe material and wall thickness? Clamp-on ultrasonic needs good acoustic coupling, and double-wall pipes kill the signal.
Are there temperature spikes? Steam flow above 200°C needs a vortex meter with a high-temperature sensor, not a standard magmeter.
We have seen many customer sites where a wrong meter choice led to zero readings or sensor damage within three months. In practice, sending us your fluid data, pipe size, temperature, and pressure early prevents this. Contact Silver Automation Instruments at [email protected] or call +86-25-68650347. WhatsApp: +86-25-52155837. Tell us your fluid type, viscosity, conductivity, pipe size (DN), flow range, and process temperature. We will reply with a recommended model and price.
Frequently Asked Questions
What is the difference between volumetric flow and mass flow?
Volumetric flow (m³/h or L/min) measures the space a fluid occupies per time. Mass flow (kg/h or tonnes/day) measures the actual mass passing. Gases change volume with temperature and pressure, so mass flow is more reliable for air and steam accounting. Silver Automation Instruments Coriolis and thermal mass meters output mass flow directly.
Can I use an electromagnetic flow meter for deionized water?
No. DI water has conductivity below 1 µS/cm, far below the 5 µS/cm threshold. An ultrasonic flow meter or an oval gear meter for low flow is a better choice. Contact us with your water quality report for guidance.
How do I choose a flow meter for high viscosity fluids?
Viscosity above 100 cP rules out turbine and electromagnetic meters. Oval gear and Coriolis meters handle high viscosity with minimal pressure drop. A food factory in Chile uses our Coriolis meter for honey at 5,000 cP. Send us your fluid viscosity in cP and we will size it.
Do Silver Instruments flow meters come with 4-20 mA HART output?
Yes. Almost all our transmitters support 4-20 mA HART as standard. Options include RS485 Modbus, pulse, and Profibus DP. Specify your output requirement when you request a quotation. We ship to Asia, Oceania, Africa, Middle East, and Latin America.
What information do you need to quote a flow meter?
We need fluid type, flow range (min, normal, max), pipe size (DN), fluid temperature, operating pressure, conductivity for magmeters, viscosity for oval gear or Coriolis, and required output. Send these details to [email protected]. We typically reply within 24 hours.
